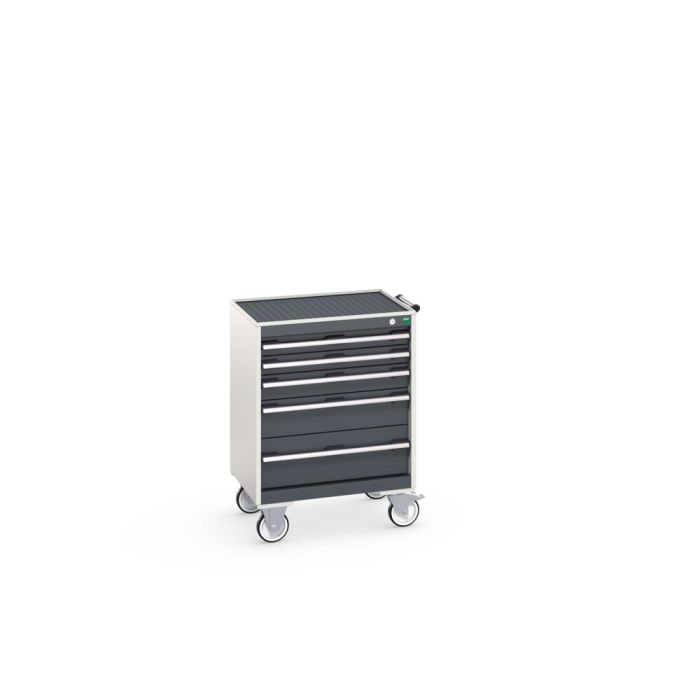

cubio mobile drawer cabinet (top tray) with 5 drawers WxDxH: 650x525x885mm
SKU:
40402117.
Heavy duty, reinforced steel housing
Designed to withstand the rigours of industrial use
Push - pull handle
4 side top tray with anti-slip mat
125mm diameter castors with swivel and brake mechanism on two wheels
Total load capacity 300kg
Central locking drawers
Drawer blocking on all drawers
Additional safety catch on all drawers to prevent accidental opening
100% extension drawers
50kg UDL capacity per drawer
Roller bearing runners ensure ease of action
Galvanised steel drawer pans
Durable powder coat finish
Metal divider, inlay mats, plastic trough dividers and removable plastic boxes available
Master and electronic locking available
Show more
Designed to withstand the rigours of industrial use
Push - pull handle
4 side top tray with anti-slip mat
125mm diameter castors with swivel and brake mechanism on two wheels
Total load capacity 300kg
Central locking drawers
Drawer blocking on all drawers
Additional safety catch on all drawers to prevent accidental opening
100% extension drawers
50kg UDL capacity per drawer
Roller bearing runners ensure ease of action
Galvanised steel drawer pans
Durable powder coat finish
Metal divider, inlay mats, plastic trough dividers and removable plastic boxes available
Master and electronic locking available
Add to Compare
10-Year Guarantee
10-15 Days - Quote to Delivery
Workspace Experts
Made in the UK
Product Details
Heavy duty, reinforced steel housing
Designed to withstand the rigours of industrial use
Push - pull handle
4 side top tray with anti-slip mat
125mm diameter castors with swivel and brake mechanism on two wheels
Total load capacity 300kg
Central locking drawers
Drawer blocking on all drawers
Additional safety catch on all drawers to prevent accidental opening
100% extension drawers
50kg UDL capacity per drawer
Roller bearing runners ensure ease of action
Galvanised steel drawer pans
Durable powder coat finish
Metal divider, inlay mats, plastic trough dividers and removable plastic boxes available
Master and electronic locking available
Designed to withstand the rigours of industrial use
Push - pull handle
4 side top tray with anti-slip mat
125mm diameter castors with swivel and brake mechanism on two wheels
Total load capacity 300kg
Central locking drawers
Drawer blocking on all drawers
Additional safety catch on all drawers to prevent accidental opening
100% extension drawers
50kg UDL capacity per drawer
Roller bearing runners ensure ease of action
Galvanised steel drawer pans
Durable powder coat finish
Metal divider, inlay mats, plastic trough dividers and removable plastic boxes available
Master and electronic locking available
Specifications & Dimensions
| Part No. (Erp) | 40402117. |
| Product Brand | cubio |
| Width | 650 mm |
| Depth | 525 mm |
| Height | 885 mm |
| Net Weight | 70.90 kg |
| Product Material | Sheet steel |
| Product Surface | Powder coated |
| Worktop/Housing Top Type | Top tray and mat |
| Worktop Surface | Synthetic rubber mat |
| Worktop Core | Sheet steel |
| Worktop Thickness | 15 mm |
| Number of Drawers | 5 |
| Drawer Heights Total | 2x 75, 1x 100, 1x 150, 1x 200 mm |
| Drawer Load Capacity | 50 kg |
| Drawer Height 1 | 75 mm |
| Drawer Height 2 | 75 mm |
| Drawer Height 3 | 100 mm |
| Drawer Height 4 | 150 mm |
| Drawer Height 5 | 200 mm |
| Internal Drawer Width | 525 mm |
| Internal Drawer Depth | 400 mm |
| Drawer Internal Heights Total | 2x 55, 1x 80, 1x 130, 1x 180 mm |
| Drawer Central Locking | Yes |
| Drawer Blocking | Yes |
| Drawer Trigger Lock | Yes |
| Total Load Capacity | 300 kg |
| Housing Width | 650 mm |
| Housing Depth | 525 mm |
| Housing Height | 700 mm |
| Castor Diameter | 125 mm |
| Castor Set Type | 2 Fixed, 2 swivel with brake |
| Castor Tyre Material | Non marking rubber |
| Packed Width | 750 mm |
| Packed Depth | 625 mm |
| Packed Height | 1010 mm |
| Packaging Weight Cardboard | 1.340 kg |
| Packaging Weight Wood | 4.100 kg |
| Packaging Weight Plastic | 0.067 kg |
